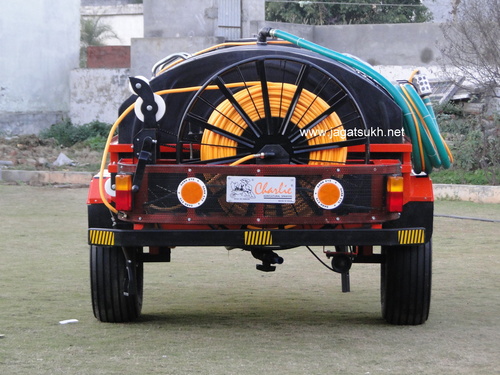

Tractor Mounted Trailer Sprayer

       Model no. :  CH-2000-TGA

       Tank Capacity : 2000 liter

       Sprayer Unit :  Charlie  Trailer Sprayer

       Working Pressure : Ideally 20 & 40 bars

       Pressure Adjustment : 1-40 bars

       RPM  : PTO rpm 540

       Pump discharge rate : 65 1/pm @ 540 rpm

       HP required : 25 HP minimum

       Tyre Size : 16 inches load tyres

       Hose Real : 400 meter hose capacity

       Pipe : 10 mm , 5 layer ,Max ideal working  pressure 60 & bursting pressure 120

       Gun : Teejet  Gunjet , with 42 feet vertical & 50 feet horizontal  throw .

       Total Weight : 370 Kg approximately

       Machine Size LxWxH ( in feet) : 11x6x5
