Home » Products » Boom Sprayer » CH-2000-HYD-B60

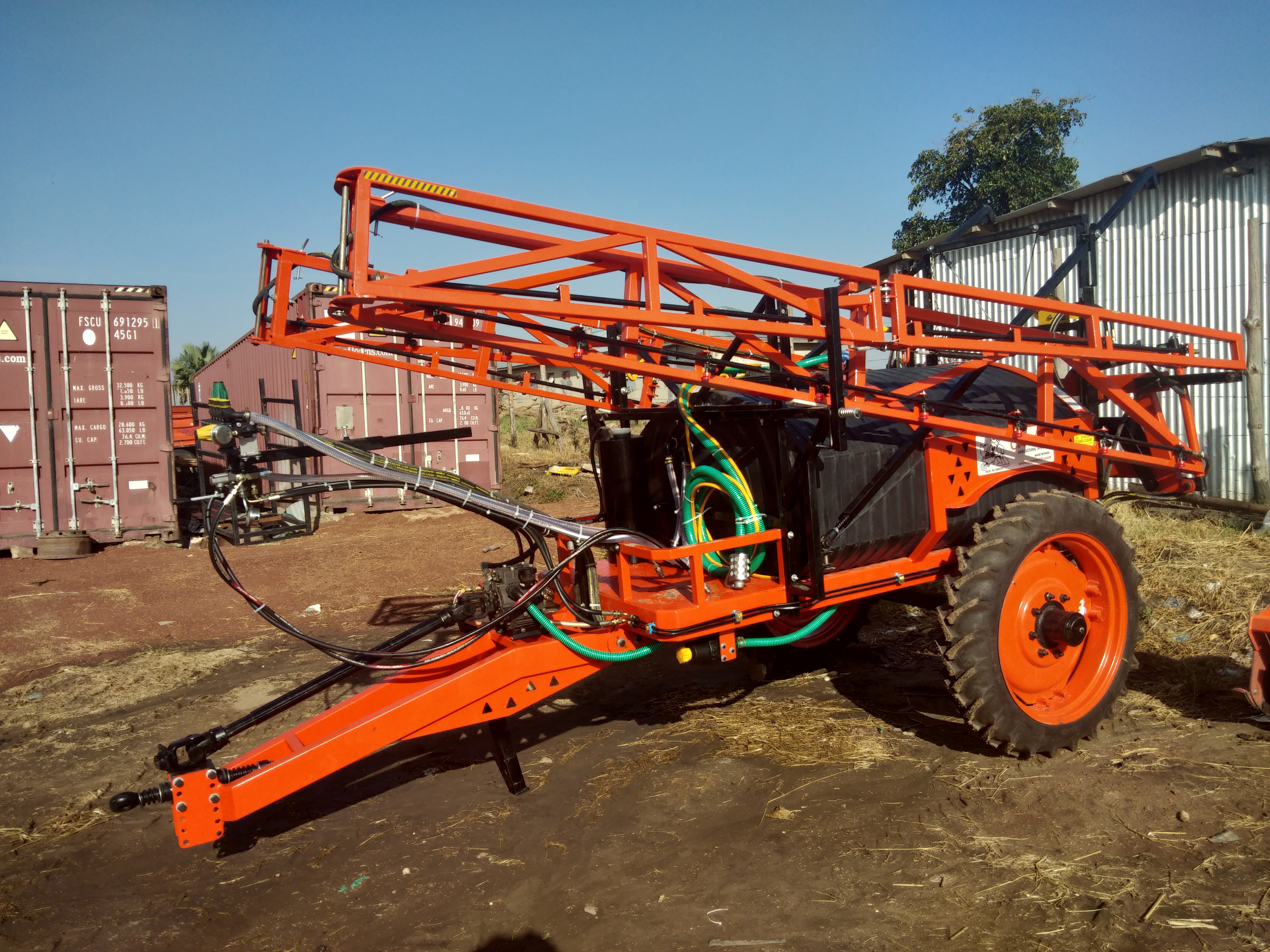

CH-2000-HYD-B60

CH-2000-HYD-B60
Send Inquiry
Product Code : CH-2000-HYD-T-B60
Brand Name : Charlie
Product Description

Technical Specifications :- Model No. CH-2000-T-HYD-B60

o Tank :-

• Capacity & weight 2200 litters, (2000 ltrs. For Chemical +200 ltrs. Extra space for Chemical’s foam) 100 Kg.

• Material Double layered, Agro Chemical resistant Polyethylene non corrosive material, UV resistant

• Agitator Automatic “5x” Mixture Diffuser Technology

• Tank lid size Breathing valve, 14 inches (355mm)

• Level indicator Graduated circular dial meter indicator

• Tank Rinsing 360 degree automatic

o Pump :-

• Type Italian make Membrane Pump

• Capacity 80 litters/Min, 540 RPM

• Working pressure Range 1 to 40 bars (15 to 600 psi)

• Structure Fabrication Made with ISI marked tested members

o Filters :-

• Type Double Auto flush out anti leak

• Layer filtration Three layer filtration, Including Primary strainer, Secondary and Suction Filters

• Capacity 100 litter/min

• Mesh 80

• Basket Filter 355 mm basket filter

o Boom Section and Height Adjustment :-

• Actuation Fully Hydraulic Self distributor with Damping system

• No of section folding 7 sections C, L1,L2,L3,R1,R2,R3

• Width 18 meter (60’)

• Nozzle type & Standards Anti Drip, Instant shut off, Flat fan and conical, (BCPC & ASABE) Standards

• No. of Nozzle & Spacing 24 nozzles at 50 cm spacing

• Minimum Maximum Height 0.60 / 1.55 m (Easy Mechanical Winch)

• Nozzle holders Interchangeable Quick cap with diaphragm chem. Savers

• Idle Working Pressure 1 bar to 6 bars

• Tractor’s working Speed Up 1 to 12 km max

• Distributor & Controls :-

• Hydraulic control Distributor Two station distributor unit with speed & pressure control

• Spray Distribution control Five section, volumetric control valve, ant drip back suction device for accurate distribution

• Spray Discharge adjustment 80 ltr/Hec to 1000 ltr/Hec

• Spray Chart & Managements Universal Application Spray Chart Provided (Drift / Run off managements)

o Max Power consumptions :-

• Machine Horse power 34 HP

• HP tractor requirement 65-75 HP

o Auto filling & Flush Out System :-

• Size 40 mm id 20 feet long

• Working principal Venturi, Three Way Self Cleaning

• Filter Capacity 70-150 litter/min

• Flush out Anti leakage, 40 mm valve

• Spare Parts All sizes Gas kits, O rings, Pump membrane, Valve ring, Nozzles tips, Tip filters Etc.

• User manual Parts list with codes User manual, Operation manual, Complete machines part list code wise mandatory

o Size :-

• Length x width x height 248 x 485 x 355 cm / (2.48 x 4.85 x 3.55 m)

• Weight 1950 kg Approximately

• Track width 178 cm

• Axles fixed, 80 mm

• Ground clearance 56 cm

• Tires 8.3 x 32

o PTO Shaft :-

• Length 24 inches

• Type & spline Italian make 6 spline telescopic

• Paint Quality Epoxy based primer covered by Epoxy marine paint, minimum 80 micron thickness
